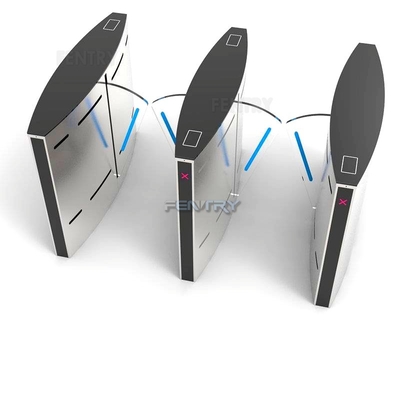

304 Stainless Steel ESD Entrance Systems Designer Turnstile Smart Waist Industrial Security Gate Flap Barrier

2 Pieces
MOQ
$800.00(2 - 9 Pieces) $780.00(10 - 29 Pieces) $750.00(>=30 Pieces)
가격
304 Stainless Steel ESD Entrance Systems Designer Turnstile Smart Waist Industrial Security Gate Flap Barrier
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Model Number: FY322
Name: ESD Turnstile Gate
Brand: FENTRY
Material: 304 Stainless Steel
Dimension: 1400x280x1000mm
Net Weight: 75kg/pcs
Passage Width: 550mm (One passage)
Passing Direction: Single directional / Bi-directional
Power Supply: AC220V/110V, 50/60Hz
Passing speed: 30-40 Persons/min
Warranty: 2 Years
기본 정보
Model Number: FY322
결제 및 배송 조건
Packaging Details: carton+wooden box for FY322 ESD entry system Designer smart waist high turnstile security gate industrial flap barrier
Supply Ability: 10000 Set/Sets per Month FY322
제품 설명
Products Description


ESD entry system Designer smart waist high turnstile security gate industrial flap barrier
A flap barrier turnstile is used when both heightened security and electronic optical turnstile access control are desired. These
turnstiles provide a barrier to entry with a very pleasing and inviting appearance. A flap barrier turnstile is often used in
office buildings and reception areas, lobbies, modern subway and transit stations, and other high-end building entrances.
Features: 1. Fault detection and alarm functions, easy to use and maintenance 2. The running status can be programmed and controlled with the built-in keyboard on the main board 3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset) 4. Anti-breakthrough function. The gate is locked automatically until opening signal received 5. Support infrared photocell for anti-pinch and reset function 6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically 7. Gate can be set as normally open or normally closed 8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed) 9. Direction can be set as single-direction or bi-direction 10. LED direction indicator 11. Gate auto opens when power off and auto close when power on 12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.
Name
Flap turnstile
Type
FY322
Brand
FENTRY
Material
SUS 304 Stainless Steel
Function
Access control
Arm Material
SUS304 Stainless Steel
Dimension
1400*290*1000mm
Net Weight
75kg/pcs
Passage Width
550mm (One passage)
Passing Direction
Single directional / Bi-directional
MCBF
5 million
Cabinet Thickness
1.2-1.5mm
Power input
AC220V
Pass speed
30-35 p/m
Driving voltage
DC24V 6.5A
Driving mode
Brushless motor
Communication interface
Dry Contact






Company Profile
Certifications
Production Process
Delivery and Packing
FAQ
Q1: What’s advantage of the tripod turnstile gate between other supplier? A: a.Fentry tripod turnstile gate is use our own research PCB board, support audio prompt while gate open.
b.Mechanism is with our own design, inner space looks more neatly. c.Use high quality electromagnet and selector sensor Q2: What’s MOQ of tripod turnstile gate? A2: we support sample order test. Q3: What’s the lead time for sample? A3: For hot-sale model, we have stocks for sample order. Over 20pcs order, lead time is 5~7 working days Q4: Does your turnstile gate support bar code, qr code reading? A4: The turnstile gate is support integrate RFID, bar code, qr code, fingerprint, facial reader, and we can offer the access control system with SDK for secondary development. Q5: Do you accept OEM, ODM order? A5: Factory with CNC laser cutting machine, bending machine, we support OEM order easily. And we also support the LED PCB board ODM logo service, it should be great help for your local brand promotion. Q6: Does your price including access control system? A7: Access control system is optional, standard price not including access control system. Q: What is the payment option? Accept payment via T/T (Bank transfer), Western Union, Money Gram, and PayPal; Accept L/C at sight (bulk order). Q: How long is your production time? 5 working days for sample order; 10-15 working days for bulk order. Q: What is the Shipping method and delivery time? 20-30 days by sea to your nearest seaport. 2-5 days by air to your nearest airport. 3-5 days by express to your doorstep. Delivery time usually takes 5-15 working days after we received your payment. Q: What is the Warranty policy of the Fentry Product? 2 year warranty (freely) for all Fentry standard products. Lifetime maintenance will be provided after the 2 year warranty period expires. Do you offer installation services? No. However, the installation process is quite easy. Since we pre-install our turnstiles before shipping, the only thing you need to do is assemble them, fix them to the ground, and connect them to the power supply. We’re here to help if you get stuck. Can I integrate your turnstile with the access control system I already have? Sure. Our turnstiles use the standard electrical interface input, so you can connect them to any third party control system you might have.
