Name: Soft Made in China Top Quality Security Access Control System Intelligent Tripod Turnstile
Brand: Soft Made in China Top Quality Security Access Control System Intelligent Tripod Turnstile
SKU: SS-G001
Price: 169.00 USD
Availability: InStock
Rating: 5 (116 reviews)

풍모 갤러리 제품 설명 따옴표를 요구하십시오

풍모

제품 사양

Model Number: SS-G001

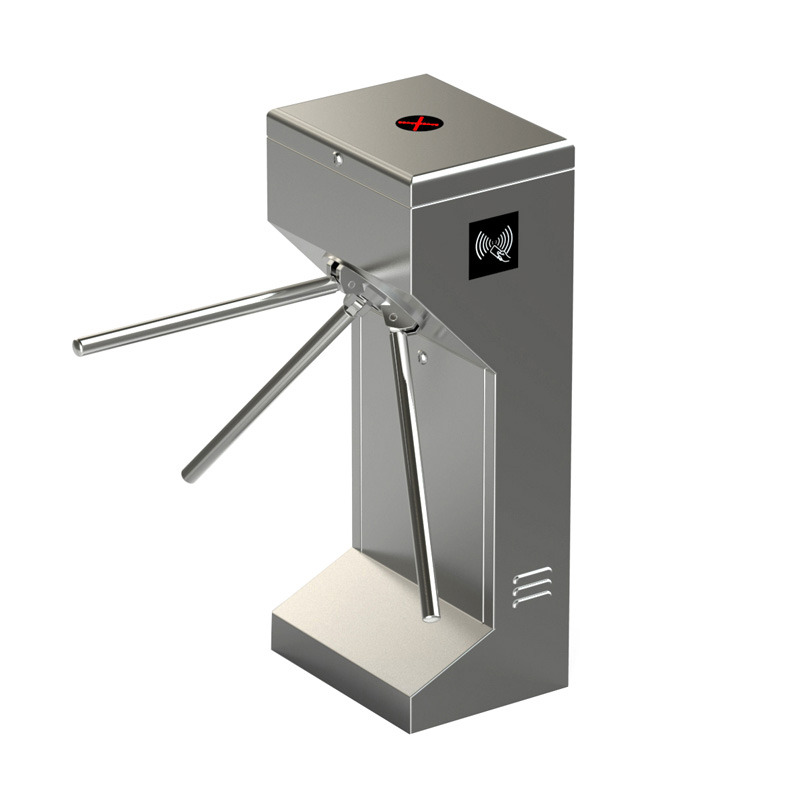

Product name: Stainless Steel 304 Tripod Turnstile Gate Barrier

Material: 304 Stainless Steel

colour: silver

Size: 1200*500*500mm

Characteristics: soft

MOQ: 1pcs

Gross weight (kg): 20

Delivery date: 25

Sample package description: Foam+Carton Box+Seaworthy wooden

기본 정보

Model Number: SS-G001

결제 및 배송 조건

Packaging Details: Foam+Carton Box+Seaworthy wooden

제품 설명

Products Description

Quick Details.

Tridop Turnstile Tridop turnstile, one type of the access management equipment, is mainly used for pedestrian access management,with the fast opening safe and convenient characteristics, is the ideal pedestrian high frequency access equipment,organically integrating machinery electronics microprocessor control,and all kinds of different reading and writing equipment. Through figuring all kinds of different reading and writing equipment,and adopting reliable performance safety protection devices real-time alarm system, and direction indicator interface, realizing the access intelligent control and management by the mutual coordination .

Model	SS-G001
Case Material	SS304(1.2mm, 1.5mm, 2.0mm optional)
Arm Material	SUS304
Production Process	CNC Laser Cutting
Size	1200500500mm(Customization acceptable)
Power input	AC100-240V,50/60HZ
Operation voltage	DC24V, 3A, Power: 40W
Electromagentic	Duty Cycle 100%
Barrier Arm Length	500mm
Passage Width	600mm
Passage direction	Single directional/Bi-directional(Optional)
Operating time	1S
Throughput Rate	25-30 persons/minute(Normally Closed) or 40 persons/(Normally Open)
Reset Time after Power on	3S
MCBF	5,000,000 Cycles
Automatic Reset Function	Automatically locked within set time(Time Adjustable)
LED Indcator	Yes
Operation Humidity	0~95%(No Freezing)
Operation Temperature	-10℃~+50℃
Operation Eenvironment	Indoor,Outdoor(Shelter)
Protection Level	IP45
Communication Interface	Standard RS485 interface, distance ≤1200 meters
Input Interface	Relay switch signal or 12V electrical level signal or 12V pulse signal of pulse width > 100ms, drive current >10mA

Stainless Steel 304 Smart Card Reader Flap Turnstile Gate Entrance and Exit Gate Turnstile Flap Barrier

The Tripod turnstile, , the whole profile is stamped from the standard SUS304, beautiful and generous shape, rust proof, durable, resisting external damage, standard electrical interface can easily integrate the bar code card, ID card, IC card and other card readers into the equipment, to provide civilized and orderly access for pedestrians, at the same time can prevent unauthorized persons access.In addition, the system is specially designed the function to meet the fire prevention requirements to ensure that the passage is unimpeded, convenient for pedestrians timely evacuating in emergency.

Advantage

1. Adopting special ARM core micro CPU circuit and digital positioning technology, the stable start and control,the more accurate brake arm automatic control ability. 2. Smoothly Running, small noise, simple and reliable restructure. 3. The surface of the movement unit adopting anti-rust and anti-corrosion treatment, durable. Hydraulic movement unit is recommended for scenic spot ticket checking advice. 4. Providing multiple RJ45 interface and RS485/232 interface, can connect a variety of card reader, magnetic stripe, EMID, MIFARE 1 CI, Ti, and support variety data format, WIEGRAND26, WIRGRAND34, WIRGRAND66, also can connect the bar code reader, fingerprint recognizer, palmprint recognizer, face recognizer, strong compatibility, convenient for system integration. 5. Adopting TCP/IP communications protocol, real-time data upload and real-time data acquisition, facilitating the clients to deal with all kinds of data analysis, and to ensure no data losing due to large amount of data or emergency. 6. Control panel with counting function, LCD/LED display function (optional) 7. High precision sensor group and intelligent recognition algorithm design can identify the number and direction of pedestrians in access very well, greatly improving the accuracy of anti-pinching and anti-trailing.Multi-point detection, more suitable for children or pedestrians with luggage going through. 8. Intelligent voice and sound prompts make the device more user-friendly and easier to use. 9. With auto malfunction inspection and alarm function, convenient for user maintenance and use. 10. Mechanical anti-pinch, infrared sensor anti-pinch function, in the process of turnstile reset obstruction, the motor automatically stop Operation within the set time, reseting after defacult delay time until the reset, small force(≤2kg). 11. Sound and light alarm function: including illegal break-in, trailing alarm. 12. Anti - impact function, the flap automatic locked without the open signal, with automatic reset function, open the gate, the system will automatically cancel the user's access authority if the pedestrians no going through in the set time, automatic reset in 5 seconds after open. 13. Infrared sensor reset, infrared sensor anti-pinch function (standard 3 pairs of infrared ray). 14. After power off, the access automatically open and automatically closed after power on. 15. Available connection with access control system, consumer system, electronic ticket system, biometric identification system, electrostatic tester and other equipments. 16. Single-direction or Bi-direction control pedestrians access, infrared sensor access. 17. Available for remote control and management directly by computer.

Transparent Acrylic Flap 15mm thickness flap, flap material Soft PU, Plastic, Acrylic(Color Optional) Strong Mechanic Component The stamping formed motion machinism offer the stable locking & unlocking Unique Electric Control Centre Speical designed mainboard, airr swtich and postion swithc all-one the water proof box, no rust risk in the drain

Company Profile

Xiamen Artemis e-commerce Co., Ltd.focuses on the trade services and has own production supply chainan and R&D team. Its main categories include security protection, green plants and flowers, sports products, has 6 years of e-commerce trade service experience

company advantage.

1.Comprehensive trade services, best customer experience.

2.Independent production supply chain with guaranteed timeliness.

3.Independent R & D team to meet the needs of personalized customization.

4.Full link direct marketing mode, more cost-effective products

Sample Room

Production Process

Certifications

Packing & Shipping

FAQ

Q1: can we connect your access control system with ours? A: Yes, we provide SDK and software development services with connection ports. Q2: is your revolving door / emergency door waterproof? A: Yes, our revolving gate / emergency gate is waterproof.

Q3: how do we install those revolving doors / barrier doors? Is it easy to do?

Yes, it's really easy to install and we've done most of the work before we sent the product. You just need to screw in the gate and connect the power cable to the Internet cable.

Q4: can you make it according to our size?

A: we can provide customized services according to your detailed requirements, or design unique revolving door products according to your real site to make different sizes, software and functions.
