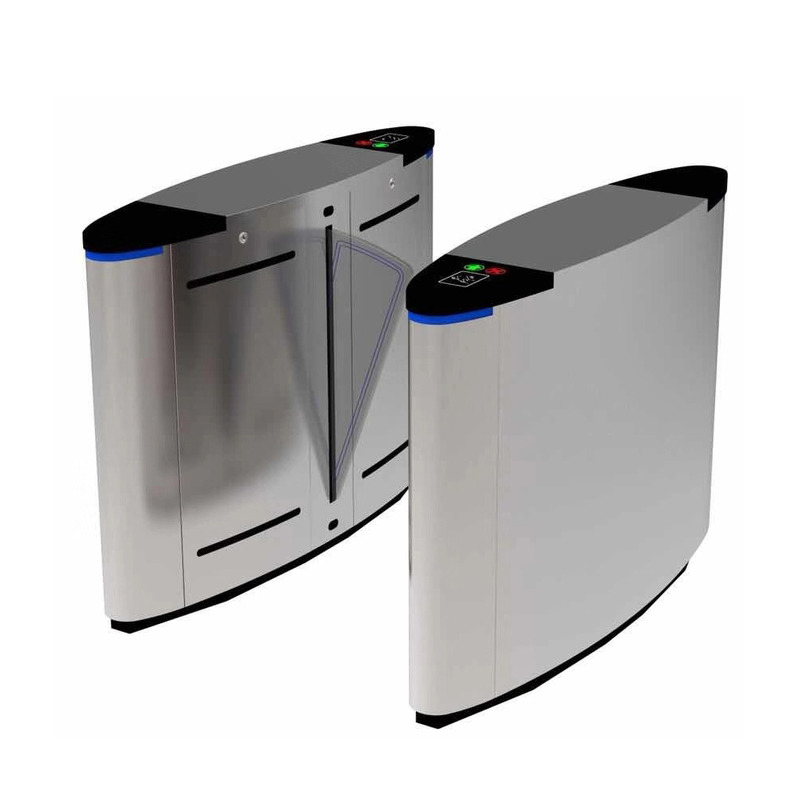

Identification Wholesale RFID Mifare QR Code Flap Turnstile Barrier Gate With Ticket System

1 Set
MOQ
Identification Wholesale RFID Mifare QR Code Flap Turnstile Barrier Gate With Ticket System
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Model Number: FP1404B
Dimension: 1200*300*1000mm
Material: Stainless Steel 304/316
Communication: TCP/IP
Passage width: ≤850mm
Power supply: AC100V-240V
Frequency: 50-60HZ
Application: Identification
Net weight: 45kg
Certificate: CE RoHS SGS FCC
Access Control system: Option
기본 정보
인증: CE RoHS SGS FCC
Model Number: FP1404B
결제 및 배송 조건
Packaging Details: Wooden Case
제품 설명
Product Description
Performance and Features:
1. Fault detection and alarm functions, easy to use and maintenance.
2. The running status can be programmed and controlled with the built-in keyboard on the main board.
3. Mechanical antipinch function. If the gate meets resistance in the reset process,motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset)
4. Anti-breakthrough function. The gate is locked automatically until opening signal received.
5. Synchronization functions (for dual gate equipment).
6. Automatic reset function. Should the user fail to pass within the prescribed time, the system will cancel the authority of the current user automatically.
7. Gate can be set as normally open or normally closed.
8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc.
9. Direction can be set as single-direction or bi-direction.
10. LED direction indicator.
11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.
12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.
13. Counter function (optional).
14. Support infrared photocell for anti-pinch and reset function.

Communication:
Dry contat relay with 12V OR 24V pulse.
TCP/IP communication with computer.
Model Number
FP1404
Passage width
≤850mm
Throughput rate
35p/m
Power supply
AC100-240V
Operational voltage
DC24V
Max power consumption
35W
Frequency
50-60HZ
prectection level
44IP
Working temperature
-25 to +70degree
Dimension excluding bars
1200X300X1000mm
Net weight including bars
45kg

Optional devices
Access Control System is for Option
1. Fingerprint reader 2. Face recognition
3. Card collector
4. Card reader
5. 2D scanner
6. Palmprint reader
7. Coin Operator

Our tripod turnstile can be installed in RFID, Mifare, Fingerprint, Biometric, ticket system,barcode, coin operated,counter for
access control.

The price is not including any access control system, in other word, you can use your own access controller. If you have no
technical staff who can install it well for you, why not order access contrller from us? We will install and test it well for you.
Detailed Images
1. #304 thicken stainless, waterproof, anti-corrosion, wear-resistant, still bright after years.
There are 3 colors of flap wing ( red, blue and transparent) available.
2. Intellegent mainboard: We have to walk through within the stipulated time after swipe card, otherwise it will be locked.
3. Swipe Window: One sided or two sided control for option.
4. Traffic indicator: Visual LED directional indicator to show "walk" or "Stop".
Related Products
Packing&Shipping
1. Wooden well protection package.
2. Fast way: By express,such as: DHL, Fedex, UPS, TNT, EMS...take about 3~7days.
3. Aircargo, by air, about 7 days for delivery.
4. Cheap way:By Sea .
After Sales Service

Our After Sales Service
1. 24-month Warranty, excellent after-sales service;
2. 24h*7d at service.
3. Detailed installation manual and wiring diagram to make everything easy.
Company Introduction
Shenzhen Haimingwei Safety Co.,Ltd is a wholesale company that manufactures good & high quality entrance inspection product (tripod turnstile, swing barrier, flap barrier, ful height turnstile , walk through metal detector, hand held metal detector, under vehicle search mirror, x-ray baggage scanner) and hobby metal detector, starting from 2016.

Our company provides the customized products and OEM service.
If you have any interest in our products and service, please don't hesitate to contact us.

Our Services & Strength

1. Any Inquiry will be replied within 24 hours.
2. Professional manufacture. Welcome to visit our wesite: www.hmwsafety.com.
3. OEM/ODM available:
1) Silk print logo on machine.
2) Customized the shape, color, and dimension.
3) Any idea you have in mind on turnstile barrier gate, we can help you to design and put it into production.
4. Hight quality, fashion design, reasonable&competitive price, fast lead time.
FAQ
Q1. What is your terms of packing?
A: First, we will pack our goods by protective film. Then we will put it in a neutral cartons. Third,we will pack it in standard
export wooden case to protect the goods perfectly.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos or video of the products and packages before you pay the
balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 5 to 20 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We offer sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
